Anti-Static Raised Floor Solutions for Data Centers

Introduction

Data centers house critical IT infrastructure that demands maximum protection from environmental hazards. One of the most overlooked threats is electrostatic discharge (ESD), which can damage sensitive equipment and disrupt operations. Anti-static raised floor solutions are essential for mitigating ESD, providing efficient cable management, and improving airflow for cooling systems. These flooring systems combine durability, electrical conductivity, and modular design, making them ideal for modern data centers.

This guide explores the structure of anti-static raised floors, warranty details, core advantages, and packaging considerations, ensuring businesses can select the right solution for their data center needs.

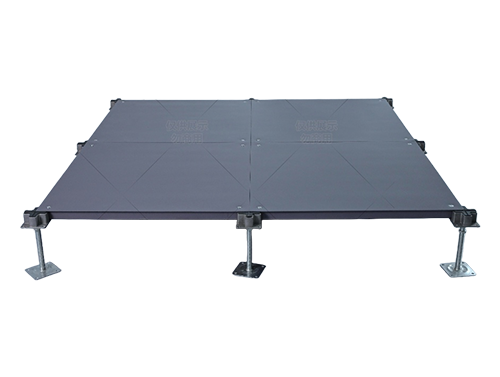

Structural Overview of Anti-Static Raised Floors

Anti-static raised floors are modular systems that elevate the data center floor above the subfloor. This design allows for efficient cable routing, airflow management, and integration of grounding systems. The structural components typically include panels, pedestals, stringers, and grounding accessories.

Key Components

1. Panels

• Made from steel, aluminum, or high-density composite materials.

• Surface may be coated with conductive or static-dissipative finishes.

• Sizes typically range from 600 mm × 600 mm or customizable.

2. Pedestals

• Support the panels and provide height adjustment.

• Constructed from steel with anti-corrosive coatings.

• Allow modular configuration to meet design requirements.

3. Stringers

• Optional horizontal connectors between pedestals for additional stability.

• Improve load distribution and reduce panel deflection.

4. Grounding Accessories

• Ensure panels are electrically connected to the building’s grounding system.

• Prevents static charge accumulation and ESD risks.

Load and Height Specifications

Core Advantages of Anti-Static Raised Floors for Data Centers

1. Electrostatic Discharge (ESD) Protection

Anti-static raised floors dissipate static electricity, reducing the risk of equipment damage. Conductive or static-dissipative finishes maintain surface resistance within the recommended range of 10⁶–10⁹ Ω, ensuring safe operation for servers, switches, and sensitive electronics.

2. Improved Airflow and Cooling Efficiency

Raised flooring allows the integration of underfloor cooling systems. Cold air can be efficiently channeled through perforated panels to server racks, optimizing energy consumption and reducing hotspots.

3. Modular and Flexible Design

The modular structure allows easy reconfiguration of panels to accommodate equipment changes. Panels can be individually removed for maintenance or cable access, minimizing disruption to data center operations.

4. High Load-Bearing Capacity

Steel and aluminum panels support heavy racks and IT equipment, maintaining stability even under high traffic and dynamic load conditions.

5. Compliance with Safety Standards

Anti-static raised floors meet industry standards for ESD protection, fire resistance, and mechanical stability. This compliance ensures that data centers remain operational and safe under regulatory inspection.

6. Long-Term Durability

Durable coatings and corrosion-resistant materials extend the service life of raised floors, reducing replacement costs and maintenance requirements.

Warranty Terms and Support

Purchasing anti-static raised floor solutions for data centers often includes manufacturer warranties that cover both material and installation. Key warranty considerations include:

Packaging Information for Shipping and Storage

Proper packaging is critical to protect anti-static raised floor components during transit and storage. Manufacturers follow strict guidelines to maintain product quality and prevent damage.

Panels

• Individually wrapped with protective films or cardboard sheets.

• Stacked on pallets with cushioning to prevent dents and scratches.

• Labeled with batch numbers, dimensions, and load specifications.

Pedestals and Stringers

• Packed in reinforced crates or boxes to prevent bending or corrosion.

• Included with installation accessories and grounding kits.

• Clearly marked for easy identification on-site.

Grounding Accessories

• Wrapped to prevent oxidation or corrosion.

• Labeled with installation instructions for safe and accurate grounding.

Key Packaging Tips:

1. Store materials in a dry, temperature-controlled environment to prevent moisture damage.

2. Handle with care to avoid scratches, bending, or warping.

3. Verify all components are included before installation.

4. Maintain the original packaging until installation to protect surface finishes.

Installation Guidelines

Preparation

1. Verify subfloor level and cleanliness.

2. Ensure HVAC and electrical systems are operational.

3. Plan panel layout according to server rack positions and airflow requirements.

Installation Steps

1. Pedestal Placement: Install pedestals at planned grid points and adjust height for leveling.

2. Stringer Connection: Attach stringers for additional stability if required.

3. Panel Installation: Lay panels onto pedestals and connect to grounding system.

4. Perforated Panels: Insert perforated panels in cooling airflow zones.

5. Inspection: Test grounding continuity and surface resistance to ensure ESD compliance.

Maintenance Guidelines

• Daily: Sweep or vacuum to remove dust and debris.

• Weekly: Damp mop using neutral pH cleaners; avoid abrasive chemicals.

• Monthly: Inspect panels, pedestals, and grounding connections for wear or damage.

• Annually: Test conductivity and surface resistance; replace worn or damaged panels as needed.

Troubleshooting Common Issues

Cost Considerations

Investing in quality anti-static raised floors reduces long-term risks, prevents equipment damage, and ensures compliance with data center standards.

Conclusion

Anti-static raised floor solutions are an essential component of modern data centers. By providing ESD protection, efficient airflow management, modular design, and high load-bearing capacity, these flooring systems ensure operational reliability and safety. Proper attention to structure, warranty, packaging, and maintenance extends service life and reduces total cost of ownership. Implementing these solutions helps data centers meet industry standards, protect critical infrastructure, and maintain optimal performance.
